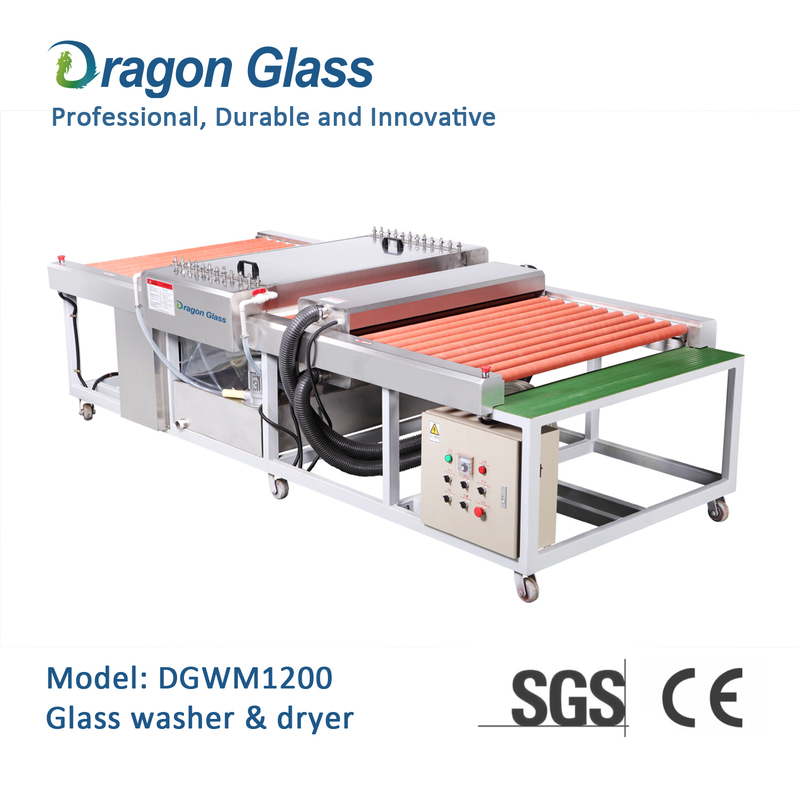

    1200mm Glass Washing Machine DGWM1200

    Availability:
    Quantity:
    Inquire Add to Basket

    1.The machine is use for flat glass washing & drying.

    2.Machine consist of loading part, washing part, drying part & unloading part.

    3.Adopt chain type transmission.

    4.Machine with 4 pairs brushes, 3 pairs sponge rollers and one water tank.


    Speed:

    0-8m/min

    Max glass width:

    1200mm

    Power:

    3.5 KW

    Min Glass size:

    400 x 400mm

    Weight

    900 KGS

    Glass thickness:

    3-25mm

    Dimension:

    3.6 x 1.4 x 1.1 M





    79

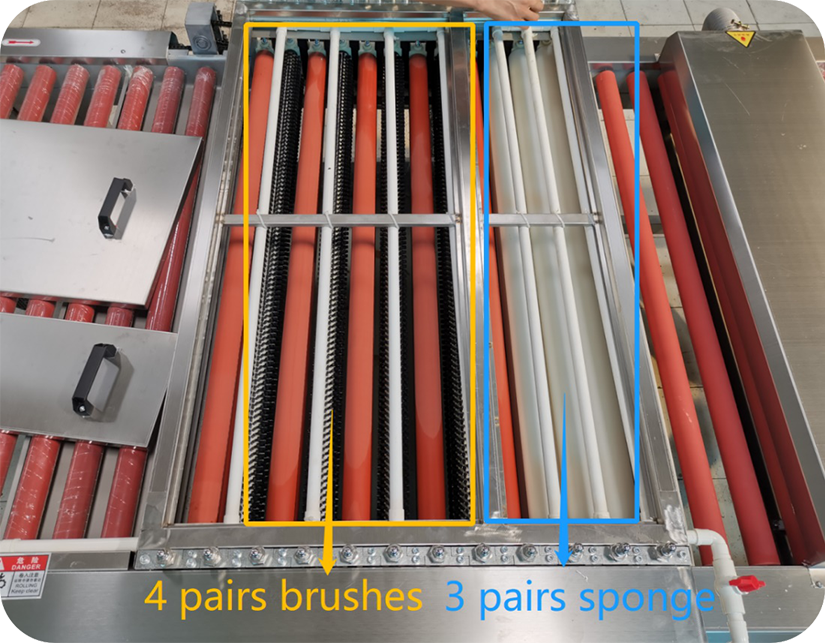

    1.Machine with 4 pairs brushes & 3 pairs sponge which have good effect to clean the glass.

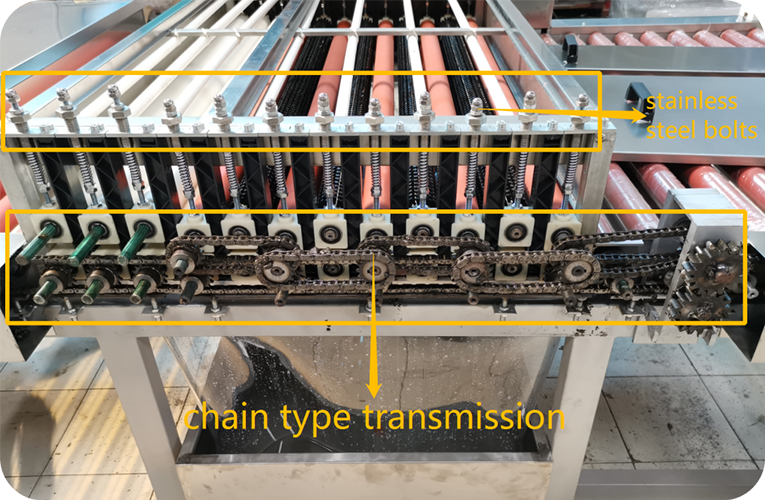

    2.Chain type transmission, transmit more stable.

    Stainless steel bolts durable in use


    78

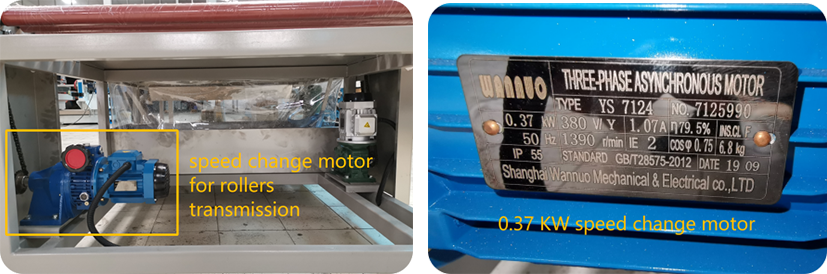

    3.Adopt 0.37KW speed change motor for rollers transmission


    77


    4.Adopt 750W air fan, the wind strong enough to blow the water


    76

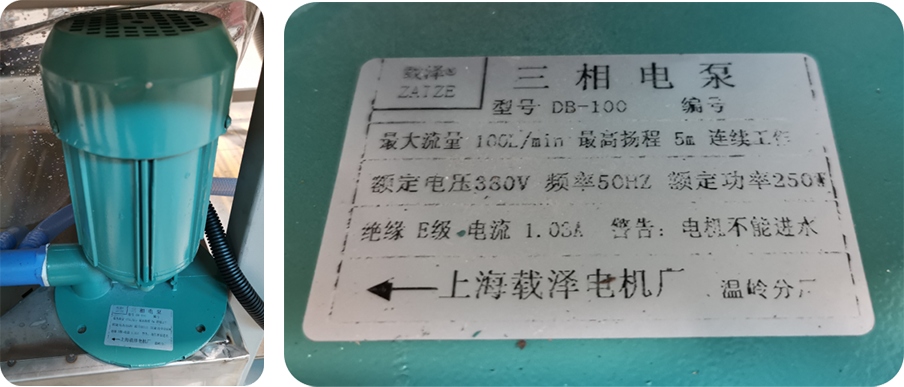

    5.250W water pump


    75

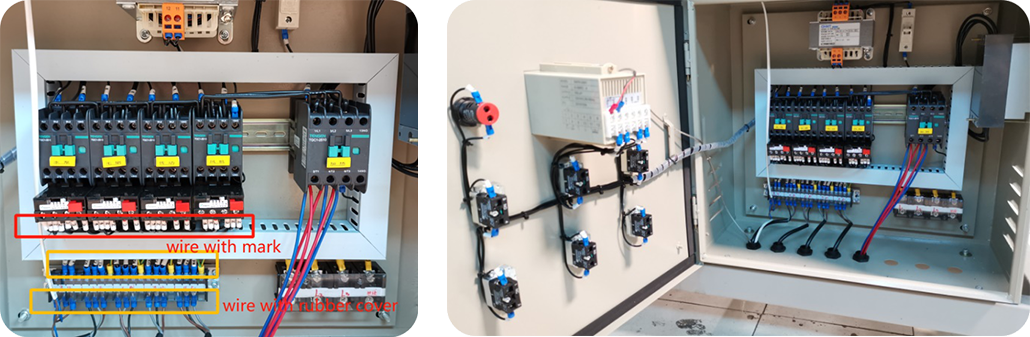

    6.The wire with rubber cover to against electric shock, and also with mark for easy maintain.


    74


    7.Control panel

    8.Big switch bottom which on the table is very convenient to touch


    73
