11 Motors Glass Straight Line Edging Machine DGEM11

Availability:
Quantity:

1. For flat glass straight line edging, corner and bottom edge grinding & polishing completed at one time.

2. All main parts are cast iron and annealing treatment, machine is stronger and stable.

3. Felt wheel polishing & digital display & pneumatic polishing is optional.


Min size glass:

80 x 80 mm

Power:

22 KW

Glass thickness:

3 - 25 mm

Weight:

4000 KGS

Process speed:

1 - 6 m/min

Dimension:

7.9x 1.4 x 2.5 M




1. Automatic glass thickness adjustment

Glass thickness adjust by motors, glass thickness showing on meter, few seconds can be finished the thickness adjustment.


18

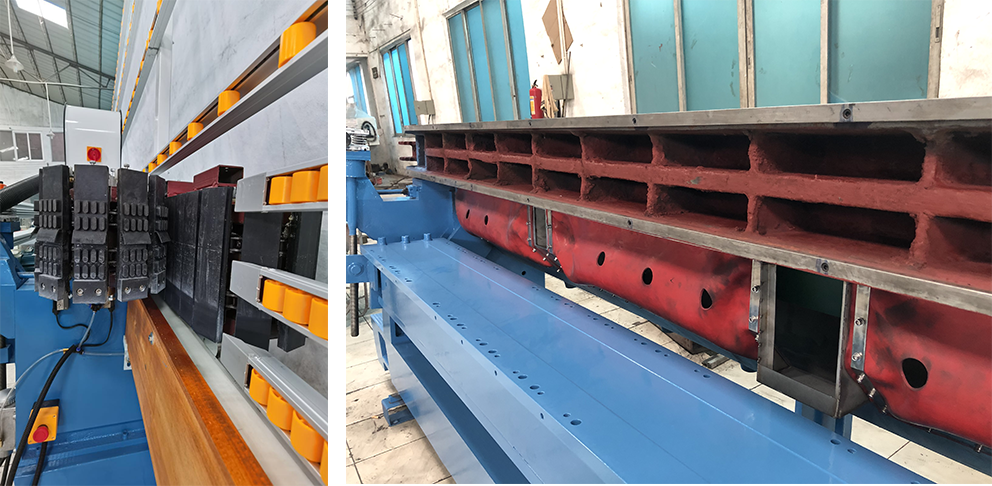

2. Transfer system

Machine adopt with Metal and rubber Pads, which can provide very strong force for transfer glass , good for big size and heavy glass, also the using time for pads will be very long.

Because of using the metal pads, the base and beam will adopt the same with beveling machine, which means the whole machine is more stable and strong.


19


The support adopting fluency strips, glass will go through more fluency and steady.
At the front and end of the rail guide, there is a glass holder which can turning to hold the glass and make it move easily.


20


3. Lubrication system & Foot kick emergency button & Water pump power supply

Automatic Lubrication system , an automatic oil pump will be used for the lubricating system,  oil will come to all slider (motors base & rail guide base) and the rail guide, good for maintenance and longer life.

Foot kick emergency button, when meet some emergency problem, except the emergency button that on the control panel, you can use your foot to kick it to make the machine stop.

Water pump power supply also adopting waterproof one to insure it safety.


21

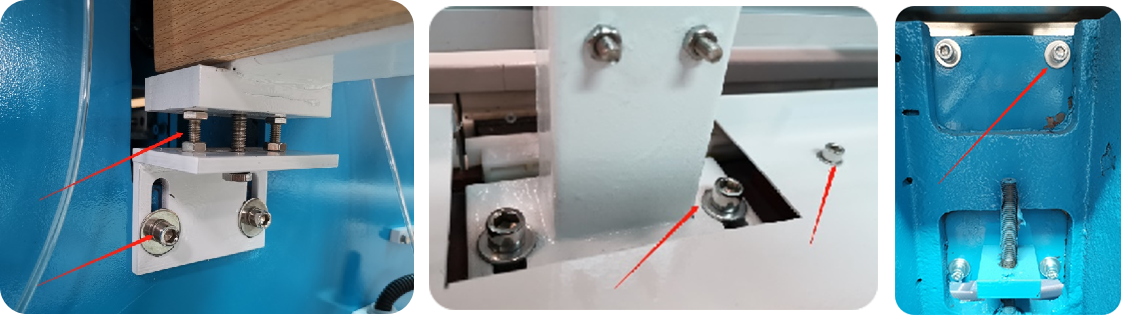

4. Cast iron & stainless steel screws

All screws and nuts are stainless steel.


22


The machine base & rail guide & motors base all are cast steel and annealing treatment, it’s tough and will not bend, the base thickness reach to 30mm thickness.


23


5. Inlet and outlet system

Inlet and outlet pipes adopting PVC material, and the joint is removable which is easy for maintain.


24


Water tank with wheels and water valve so it’s very easy to exchange water.


25

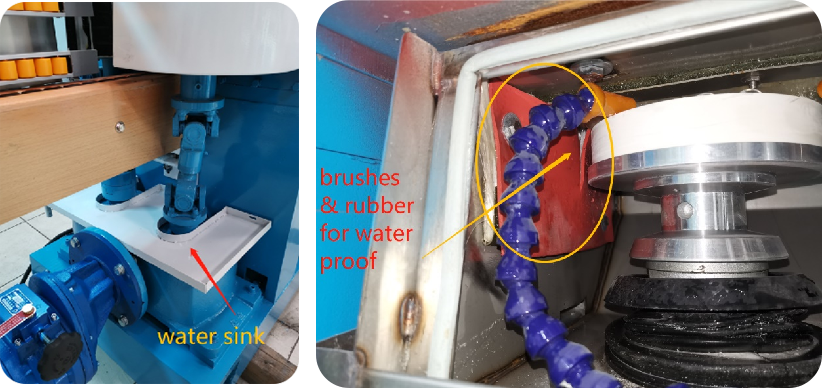

The outlet side of the sink has installed brushes & rubber to clear the water , and below the rail guide has installed a sink to collect the water, so water will not get into the gear box and floor etc..


26


6. Electric components adopting Schneider / DELIXI brand.

All wires with lug for ensure electric safety, and all wires with mark to match every components so that it’s easy to maintain.


27

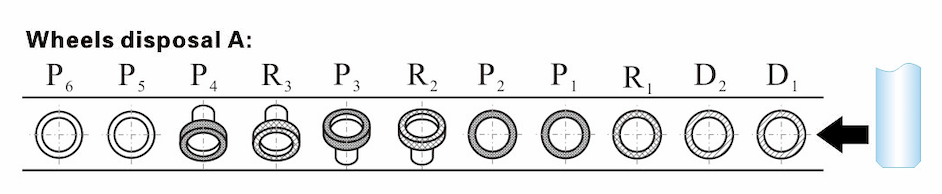

7. Motors and Wheels

Adopting professional edging motors, motors are stable and quiet.

7 wheels (motors / spindle) for bottom grinding & polishing

4 wheels (motors / spindle) for front & back chamfering


28


8. The picture of Glass finish edging


29


9. Packing & shipping

Every part pack by foam separately and fix all on the machine, so it’s easy for unloading and customer will not confuse for the parts.


30
